Monitoring

Audience: Platform operator

Note

v2.x users — see migration for the metric rename. Every metric was renamed from the vault_injector_* prefix to vdbi_* in v3.0.

Prometheus

The injector, renewer, and revoker each expose a Prometheus endpoint. The metrics are grouped by lifecycle stage (token / lease renew, revoke, admission), bookkeeping (KV store/delete), authorization (service_account_*), and v3.0 additions for NRI and projected-SA mode.

Metric Name	Description	Labels
`vdbi_renew_token_count_success`	Vault injector token renewed with success count	`uuid`, `namespace`
`vdbi_renew_token_count_error`	Vault injector token renewed with error count	`uuid`, `namespace`
`vdbi_renew_lease_count_success`	Vault injector lease renewed with success count	`uuid`, `namespace`
`vdbi_renew_lease_count_error`	Vault injector lease renewed with error count	`uuid`, `namespace`
`vdbi_revoke_token_count_success`	Vault injector token revoked with success count	`uuid`, `namespace`
`vdbi_revoke_token_count_error`	Vault injector token revoked with error count	`uuid`, `namespace`
`vdbi_token_expiration`	Vault injector expiration time for tokens	`uuid`, `namespace`
`vdbi_lease_expiration`	Vault injector expiration time for leases	`uuid`, `namespace`
`vdbi_token_last_renewed`	Last vault token successful renewal	`uuid`, `namespace`
`vdbi_synchronization_count_success`	Vault injector synchronization with success
`vdbi_synchronization_count_error`	Vault injector synchronization with error
`vdbi_pod_cleanup_count_success`	Vault injector PodCleanup with success
`vdbi_pod_cleanup_count_error`	Vault injector PodCleanup with error
`vdbi_last_synchronization_success`	Last vault token successful renewal
`vdbi_orphan_ticket_created_count_success`	Vault injector orphan ticket created with success
`vdbi_orphan_ticket_created_count_error`	Vault injector orphan ticket created with error
`vdbi_store_data_count_success`	Vault injector data stored with success	`uuid`, `namespace`
`vdbi_store_data_count_error`	Vault injector data stored with error	`uuid`, `namespace`
`vdbi_delete_data_count_success`	Vault injector data delete with success	`uuid`, `namespace`
`vdbi_delete_data_count_error`	Vault injector data deleted with error	`uuid`, `namespace`
`vdbi_connect_vault_count_success`	Vault injector connect to vault with success
`vdbi_connect_vault_count_error`	Vault injector connect to vault with error
`vdbi_service_account_authorized_count`	Vault injector service account is authorized to assume dbRole
`vdbi_service_account_denied_count`	Vault injector service account is not authorized to assume dbRole	`service_account_name`, `namespace`, `db_role`, `cause`
`vdbi_last_synchronization_duration`	Vault injector last duration of synchronization
`vdbi_is_leader`	Return 1 if the vault injector is leader, else 0	`lease_name`
`vdbi_leader_election_attempts_total`	Total number of attempts to acquire leadership	`lease_name`
`vdbi_leader_election_duration_seconds`	Duration in seconds that this instance has been the leader	`lease_name`, `leader_name`, `mode`
`vdbi_fetch_pods_success_count`	Count that increase when their is no error retrieving pods
`vdbi_fetch_pods_error_count`	Count that increase when their is an error retrieving pods
`vdbi_mutated_pods_success_count`	Count that increase when a pod is successfully mutated
`vdbi_mutated_pods_error_count`	Count that increase when their is an error mutating pods

v3.0 metrics — NRI mode

Metric Name	Description	Labels
`vdbi_nri_substitutions_total`	Number of CreateContainer events where the NRI plugin emitted an env adjustment
`vdbi_nri_unwrap_failures_total`	Number of NRI plugin failures resolving credentials at CreateContainer	`reason`
`vdbi_nri_resolve_duplicate_total`	Number of `resolveMapping` calls that hit a concurrent in-flight call (singleflight share). Should stay near 0 in normal operation; spikes indicate concurrent CreateContainer races.

v3.0 metrics — projected-SA mode

Metric Name	Description	Labels
`vdbi_token_request_errors_total`	Number of failed Kubernetes TokenRequest calls (per pod's SA, projected-SA mode)	`reason` (`rbac_denied`, `sa_not_found`, `unauthorized`, `other`)
`vdbi_vault_login_errors_total`	Number of failed Vault logins, classified for triage	`reason` (`audience_mismatch`, `sa_not_bound`, `role_not_found`, `vault_sealed`, `permission_denied`, `other`), `auth_mode` (`legacy`, `projected`, `projected_bookkeeping`)
`vdbi_projected_role_misconfigured_total`	Number of times a Vault role used in projected-SA mode was found without `token_period > 0` (pod-token will die at `token_max_ttl`)	`role`

Grafana

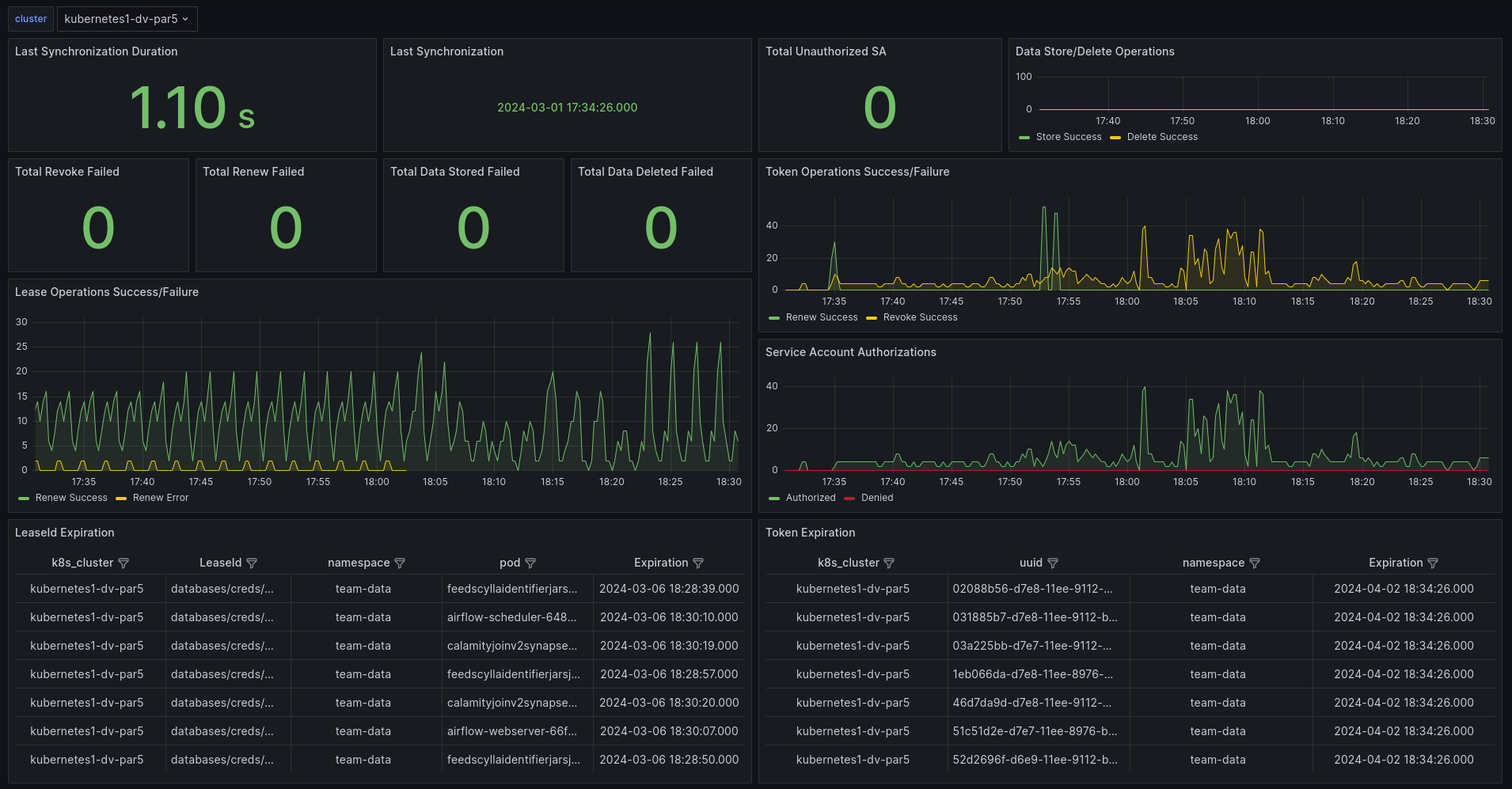

A reference dashboard ships in the repo at dashboard.json. Import it into Grafana via Dashboards → Import → Upload JSON file, point it at your Prometheus data source, and you get panels for token and lease lifecycle, admission throughput, leader status, and the v3.0 NRI / projected-SA failure breakdowns.

Grafana dashboard

Alertmanager

The rules below cover the failure modes that warrant a page: SA authorization denied, token or lease renewal failures, and expiration warnings before TTL runs out. Tune for: durations and severity labels to your on-call posture before deploying.

Service Account Denied

- alert: VaultDbInjectorServiceAccountDenied
  annotations:
    description: "Service Account (SA) `{{ $labels.service_account_name }}` in namespace `{{ $labels.exported_namespace }}` was denied access to db_role `{{ $labels.db_role }}` due to `{{ $labels.cause }}` on cluster `{{ $labels.k8s_cluster }}`. Immediate investigation is recommended to ensure proper access controls and service configurations."
    summary: "Service Account `{{ $labels.service_account_name }}` in namespace `{{ $labels.exported_namespace }}` was denied by the injector."
  expr: increase(vdbi_service_account_denied_count{}[2m]) > 0
  for: 1m
  labels:
    severity: critical

Response actions:

Verify the service account permissions and roles.
Check the db_role configurations.
Investigate the cause of denial.

Token renewal failure

- alert: VaultDbInjectorFailToRenewToken
  annotations:
    description: "VaultDbInjector encountered an error while attempting to renew a token. This might affect the continuous operation of dependent services."
    summary: "VaultDbInjector token renewal failure for namespace `{{ $labels.exported_namespace }}` on cluster `{{ $labels.k8s_cluster }}`."
  expr: increase(vdbi_renew_token_count_error{}[2m]) > 0
  for: 1m
  labels:
    severity: warning

Response actions:

Review the injector logs for token-renewal errors.
Check the Vault policy still allows auth/token/renew.
Look for network issues between the renewer and Vault.

Lease renewal failure

- alert: VaultDbInjectorFailToRenewLease
  annotations:
    description: "VaultDbInjector encountered an error while attempting to renew a lease. Similar to token renewal failures, this can disrupt service operations if not addressed."
    summary: "VaultDbInjector lease renewal failure for namespace `{{ $labels.exported_namespace }}` on cluster `{{ $labels.k8s_cluster }}`."
  expr: increase(vdbi_renew_lease_count_error{}[2m]) > 0
  for: 1m
  labels:
    severity: warning

Response actions:

Inspect the renewer logs for lease-renewal errors.
Confirm the Vault policy allows sys/leases/renew.
Check connectivity to Vault.

Token expiration warnings

- alert: VaultDbInjectorTokenExpirationLessThan14Days
  annotations:
    description: "A token is nearing expiration (less than 2 weeks). Renewing or rotating the token promptly ensures continuous service operation."
    summary: "Token nearing expiration in namespace `{{ $labels.exported_namespace }}` on cluster `{{ $labels.k8s_cluster }}`."
  expr: vdbi_token_expiration - time() < 1209600
  for: 90m
  labels:
    severity: warning

- alert: VaultDbInjectorTokenExpirationLessThan7Days
  annotations:
    description: "A token will expire in less than 7 days. Immediate action is required to renew or rotate the token to avoid service disruption."
    summary: "Urgent: Token expiration warning for namespace `{{ $labels.exported_namespace }}`."
  expr: vdbi_token_expiration - time() < 604800
  for: 5m
  labels:
    severity: critical

Response actions:

Identify the service or application using the token.
Trigger a renewal or rotation.
Review token policies for alignment with operational requirements.

Lease expiration warnings

- alert: VaultDbInjectorLeaseExpirationLessThan4Days
  annotations:
    description: "A lease is nearing expiration (less than 4 days). Addressing this promptly can prevent potential access issues for services relying on leased credentials or secrets."
    summary: "Lease nearing expiration for namespace `{{ $labels.namespace }}` on cluster `{{ $labels.k8s_cluster }}`."
  expr: vdbi_lease_expiration - time() < 345600
  for: 3m
  labels:
    severity: warning

- alert: VaultDbInjectorLeaseExpirationLessThan1Day
  annotations:
    description: "A lease will expire in less than 1 day. Immediate renewal is critical to maintaining access for the dependent services."
    summary: "Critical: Lease expiration imminent for namespace `{{ $labels.namespace }}`."
  expr: vdbi_lease_expiration - time() < 86400
  for: 3m
  labels:
    severity: critical

Response actions:

Identify and renew the leases for the affected services.
Review lease durations and renewal policies to prevent recurrences.
